ASTM CBR Mould

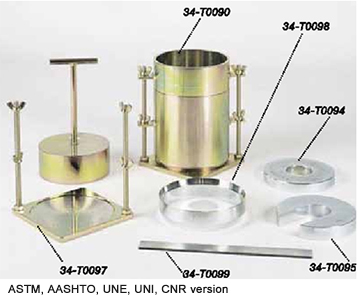

ASTM, AASHTO, UNE, UNI, CNR version

Model Description
34-T0090：CBR mould complete with collar and perforated base plate. Plated steel, 6 in. (152.4 mm) dia. x 7 in. (177.8 mm) body height
34-T0091：Spacer disc with "T" handle. 515/16 in. dia. (150.8 mm) x 2.416 in. (61.4 mm) high
34-T0094：Annular surcharge weight, 2.27 kg
34-T0095：Slotted surcharge weight, 2.27 kg
34-T0098：Cutting edge
34-T0097：Solid CBR base
34-T0099：Straight edge. 3x30x300 mm

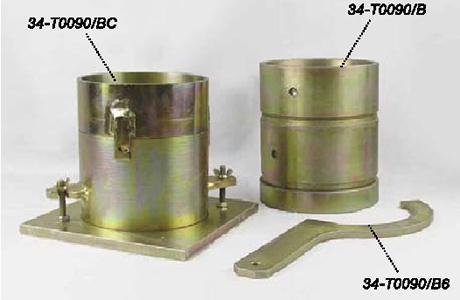

British standard CBR Mould and accessories

Model Description
34-T0090/B：CBR mould body with base plate, made from plated steel threaded on both ends. 152mm ID x 127mm high, 50mm high collar
34-T0090/BC：CBR mould with three plugs collar
34-T0090/B6：“C” spanner. To mount and to dismount the collar from the mould body, 1kg
other accessories available on request
