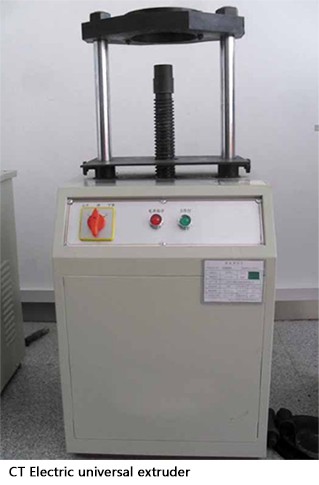

CT Electric universal extruder

Electric universal extruder

The ejector is used for ejecting the specimen made of bituminous mix material and the material stabilized with inorganic binders etc. It can quickly eject the specimen from the mold and easy to operate.

Model CT
Mold dimensions:
Soil specimen:  Dia. 102 x 116 mm, Dia. 152 x 116
Bituminous mix material specimen: Dia. 101.6 x 87 mm
Material stability with inorganic binders: Dia. 50mm × 50mm, Dia. 100mm × 100mm, Dia. 150mm × 150mm
Maximum axial capacity: 150 KN
Maximum travel: 250mm
Speed forward/reverse: 170mm/min.
Power supply: 380V 50Hz
Input power: 1100 W
