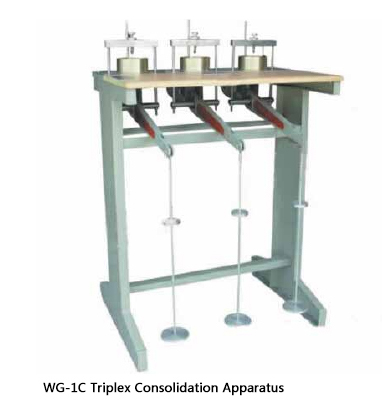

WG-1C Triplex Consolidation Apparatus

WG-1C Triplex Consolidation Apparatus is used for compression test of soil, and to determine the relationship between deformation and compression of soil, to calculate the unit sediment compression index, resilient index, as well as consolidation coeffi cient of soil, etc.

Mode WG-1C
Frame:  Steel structure
Sample area:  30 cm² or 50 cm²
Sample's quantity: Three
Lever ratio: 12: 1 (mid and low pressure)
Consolidation container: One  beam,  two beams,  three beams
Pressure range: 12.5 kpa/30cm² to 800 kpa/50cm², 12.5 kpa/30cm² to 400 kpa/50cm²
Grade: Grade 8, grade 7
Load level(kpa): 12.5,  25,  50,  100,  200,  300,  400,  800, 1600, 3200

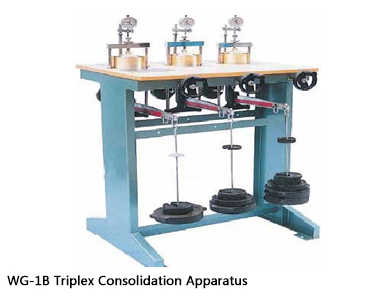

WG-1B Triplex Consolidation Apparatus

Model WG-1B
Sample area:  30 cm² or 50 cm²
Sample's quantity:  Three
Pressure range: 12.5~160kpa, 12.5~800kpa
Grade: 9, 8 grade
Load level(kpa): 12.5, 25, 50, 100, 200, 300, 400, 800, 1600, 3200

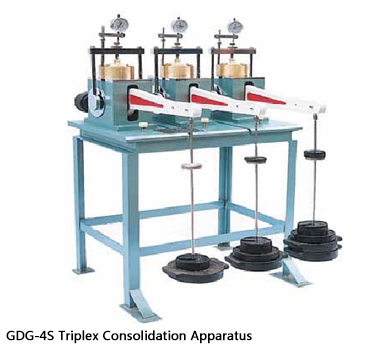

GDG-4S Triplex Consolidation Apparatus

Model GDG-4S
Sample area:  30 cm² or 50 cm²
Sample's quantity:  Three
Pressure range: 12.5~3200kpa, 12.5~1600kpa
Grade: 10, 9 grade
Load level(kpa): 12.5, 25, 50, 100, 200, 300, 400, 800, 1600, 3200

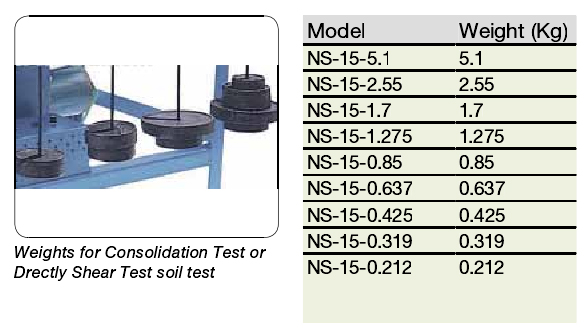

Weights for Consolidation Test or Directly Shear Test
