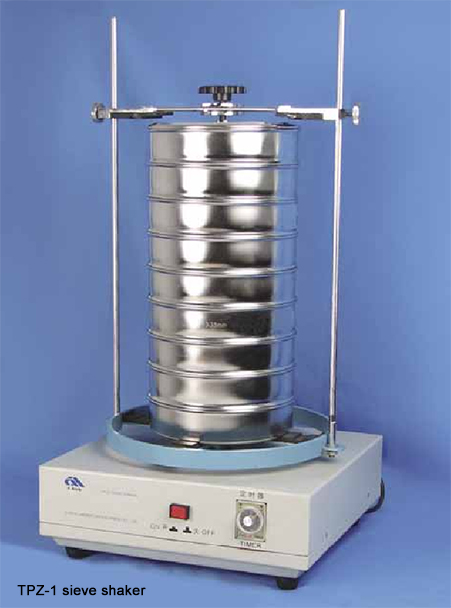

TPZ-1 sieve shaker

Model TPZ-1
Shaking frequency: 500 times/min.
Shaking method: up and down
Shaking amplitude: 1.5 mm
Time setting: 0 – 60 min. selectable
Motor power: 25 W
Sieve size: Ø200  x  50  mm  (9pieces)  or Ø300 x 75mm (7pieces)
Sieve opening: 20 – 0.75 mm
Power supply: 220 V 50 Hz
Dimension: 430 x 430 x 750 mm
Weight: 16 kg

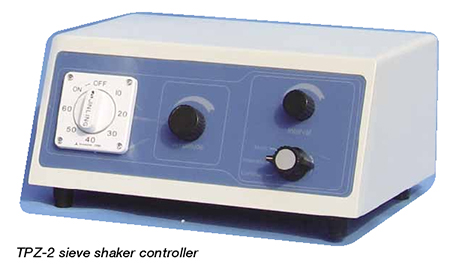

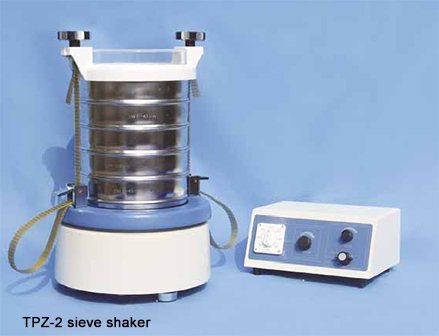

TPZ-2 sieve shaker

Vibrating Screen is a latest laboratory automatic screen designed and developed by our factory, applied to particle analysis in the fields of pharmacy, metallurgy, foods, cosmetics and grain, and characterized by convenient operation, no rotary component, and electronic controlled amplitude and frequency. Its performance index is equal to that of the vibrator with sieve manufactured by German FRITSCH. In comparison with the traditional manual screen, it can greatly reduce labor intensity of operators and raise working efficiency. It is an essential laboratory screen for particle analysis.

Model TPZ-2
Operating range: ≤325 mesh
Vibration frequency: 3000 times/min, 6000 times/min
Amplitude selection: 0-3 mm, continuous adjustment
Vibration mode: Fine vibration; Intermittent Vibration; Continuation Vibration
Sieve size:  Ø200 x 50 mm
Weight: 20 kg
Power supply: AC220V±22V, 50Hz±1Hz
