Perforated sieves specifi cation

There are two materials test sives includes stainless steel, polished chrome Iron sheet.

Test sieve kit for gravel

Includes twelve test sieves and one set of lid and cover. Mesh size is shown as below:

2.36mm, 4.75mm, 9.50mm, 16.0mm, 19.0mm, 26.5mm, 31.5mm, 37.5mm, 53.0mm, 63.0mm, 0.75mm, 90.0mm.

Test sieve kit for sand and gravel aggregate

Includes seven dia. 300 test sieves and one set of lid and cover. Mesh size is shown as below: 150um.

9.50mm, 4.75mm, 2.36mm, 1.18mm, 600um, 300um, 150um.

Test sieve kit for asphalt aggregate

Includes seven dia. 300 test sives and one set of lid and cover. Mesh size is shown as below:

0.075mm, 0.15mm, 0.3mm, 0.6mm, 1.18mm, 2.36mm, 4.75mm, 9.5mm, 13.2mm, 16mm, 19mm, 26.5mm, 31.5mm, 53mm

Test sieve kit for soil

Includes eleven dia. 200 test sives and one set of lid and cover. Mesh size is shown as below:

0.074mm, 0.25mm, 0.5mm,1.0mm, 2.0mm, 5mm, 10mm, 20mm, 40mm, 60mm

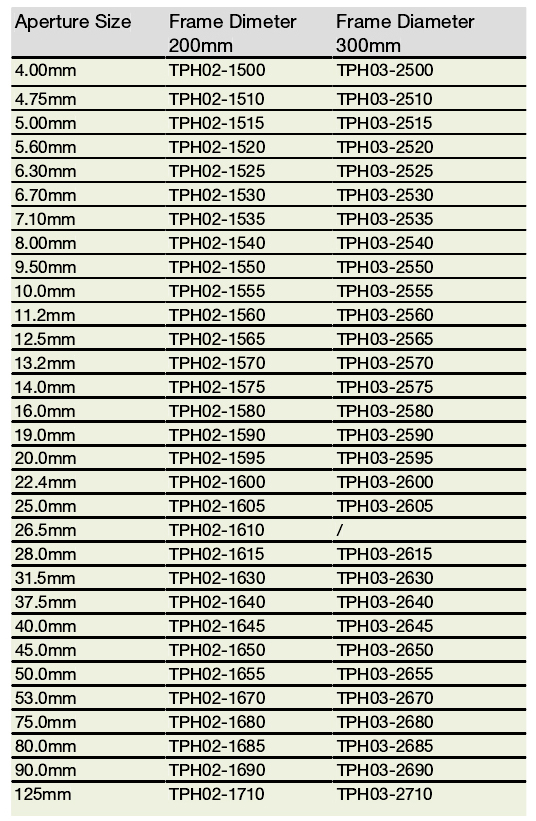

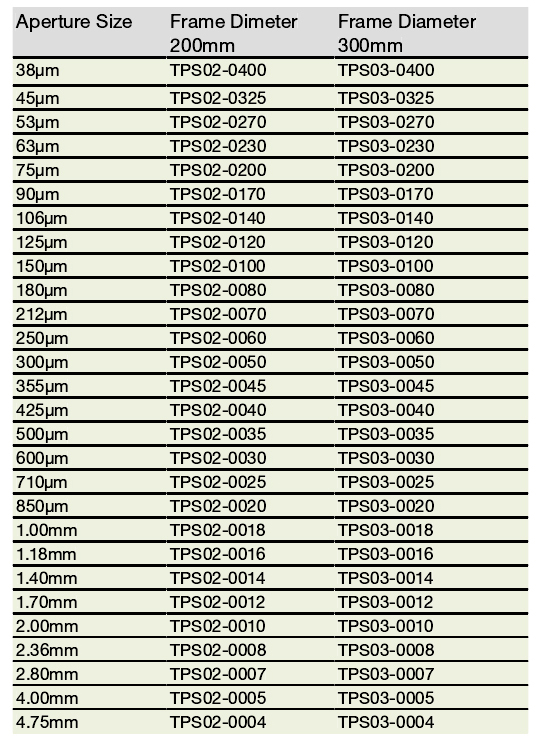

Woven wire test sieves specifi cation
