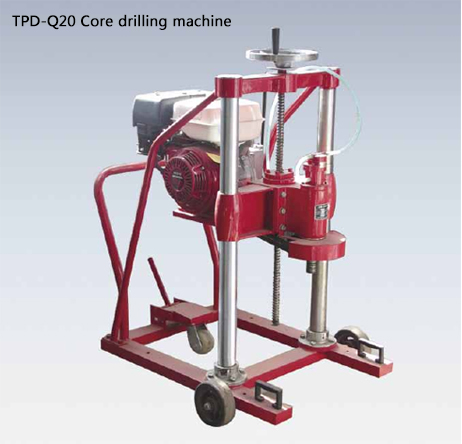

TPD-Q20 Core drilling machine

Model TPD-Q20(Petrol control)
Max Dia of drilling: 200 mm
Max depth of drilling: 700 mm
Rotate speed: 800-1200 r/min
Power: 5.5/9P
Weight: 130 Kg
Dimentions: 1080×780×1150 mm

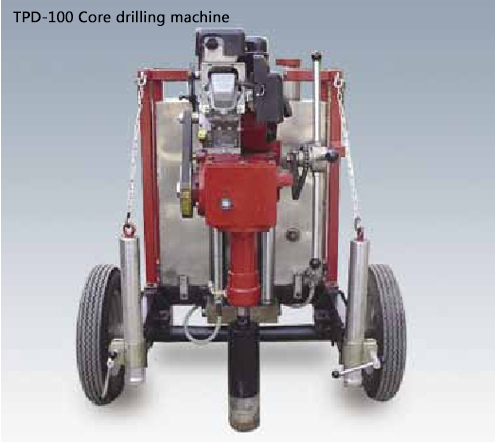

TPD-100 Core drilling machine

Model TPD-100
Auxiliary power: 6.5 hp
Depth of conventional drilling: 350 mm
Rotate speed: 600-700 r/min Dril ing vertical downward direction.
Mode of operation: manual feed, relying on self-respect down the sampling
Dril ing diameter: 150 mm below
Coring Time: 4-5  minutes to get 230 mm cement concrete
Max capacity of Water tank: 140 liters
Weight: 350 Kg
Dimentions: 1430×1150×1200mm

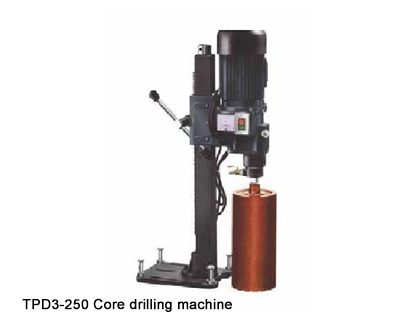

TPD3-250 Core drilling machine

Model TPD3-250
Max Dia of drilling: 200 mm
Rotate speed: 700/1200 r/min
Power: 2.2 Kw  380 V
Weight: 50 Kg

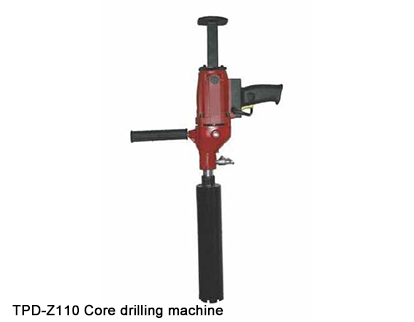

TPD-Z110 Core drilling machine

Model TPD-Z110
Max Dia of drilling: 110 mm
Rotate speed: 0-1900 r/min
Power: 1.4 Kw 220V
Weight: 6 Kg

* Please note that all core bits need to be ordered separately.
