PENETROMETER
Automatic penetrometer
Test the plasticity of lubricating grease and the hardness of bitumen.
Main structure:
1. A set of lights, control circuit inside the base, time display and penetration display windows and function keys on the panel.
2. Needle rod releaser
3. A movement knob on the left of releaser.
4. Shift sensor
Model CT-A Time
Setting: 5-30s Max needle penetration: 500
Displace measure range: 0-30mm
Measuring accuracy: ±1%(0 - 10mm); ±10%(10.1 - 30mm)
Standard needle: 2.5±0.05g
Sample vessel: dia. 70mm
Power supply: 220VAC 50Hz
Power: 25W
Max Gross weight: 10kg

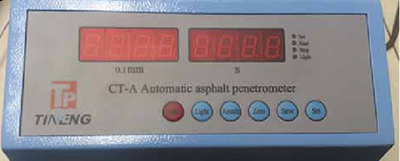

Controller of Automatic penetrometer
