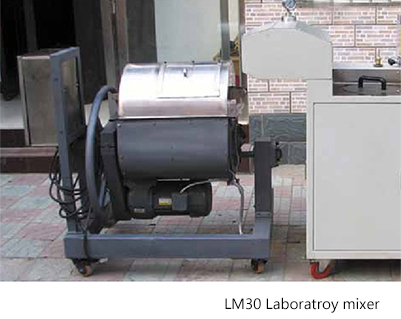

LM30 Laboratroy mixer

iFoam asphalt tank comes with an agitator, to ensure consistent temperature of asphalt tank from top to bottom. iFoam asphalt tank ergonomic height above ground makes the dumping asphalt work more convenient and safe.All iFoam bitumen pipes have heat insulation function, to avoid clogging the asphalt, eliminating lines clean.

For high-quality base layers from cold mixes
Foamed bitumen is formed by adding a small amount of water in the hot asphalt, when water is injected in hot asphalt, the water would quickly evaporate, thereby causing the asphalt saturated vapour bubbles produce an explosion in volume inflated to 15-20times. Foam asphalt increased volume and surface-active signifi cantly, during the foaming process, significantly, and thus the asphalt to be able to ful y spread the galvanizer.

When using foamed bitumen as a stabilizer, by adding a small amount of cement to make recycling mixture layer not only can obtain the necessary strength of the structure, but also can improve the surface quality and prevent crack formation. This technology is mainly used for overhaul of roading paving.

This machine formed by bitumen heating cylinders, bitumen pipeline heating system, water cooling pipe system, tank, nozzle bodies, temperature meters, pressure gauges, relays, water fl ow meter and other components.

LM30 Laboratroy mixer for the production of cold mixes, A perfect match for the Laboratory Foam Bitumen Plant

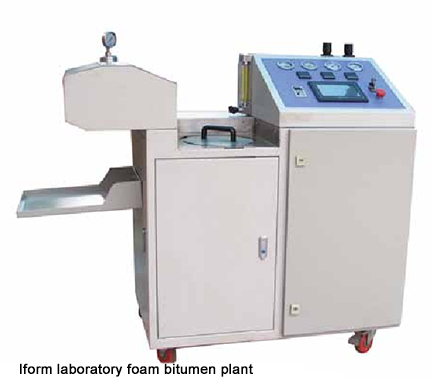

Iform laboratory foam bitumen plant

Model Iform
Water consumption: Min: 2.5L/Hour Max: 6.0L/Hour
Air consumption: Min: 0L/Hour Max: 100L/Hour
Max bitumen pump pressure: 2.5Mpa
Max water pressure: 0.6Mpa
Air pressure: Min: 140Mpa
Max: 170Mpa
Water Temperature: Min: 10°C
Max: 60°C
Bitumen tank volume: 12.5L
Power supply voltage: 220V
Water tank volume: 6L
Air chamber Volume: 6L
Rated power Bitumen pump: 1.5k W
Heaters: 3.2k W
Control: 0.1k W
Bitumen pump speed:   Min: 1Hz
Max: 60Hz
Power supply voltage: 220V
Asphalt foam spraying time can be set: 0.1-999S
Dimension (lengthxwidthx height): 1261x670x1200mm

Direct injection of the foamed bitumen in to the mixing chamber of the laboratory mixer enables mixes to be processed to specification and test specimens to be produced. The twin-shaft compulsory mixer is not only ideally tailored to the laboratory plant in terms of performance and design, however, but is also connected to the plant's power supply. The high mixing intensity matches that of continuous mixers used on the constrution site. The LM30 has a capacity of approx. 30kg, and additionally offers variable settngs for speed and mixing time. The mixing chamber is simply pivoted downwards about 180 o and the cover opened to allow discharge of the mix. And what's more: when used separately, the LM30 is suitable for most diverse mix proportions.
