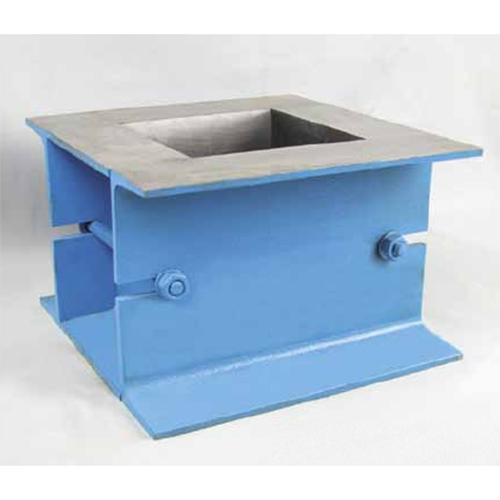

CUBE MOULD
STANDARD:EN 12390-1, BS1881
Test procedures require that specimens are cast in a number of standard sizes convenient for compressive and fl exural strength determination. The engineering tolerances specified for moulds are very stringent and the internal finish of the surface must be of a high order to comply with the recommendations laid down in many International standards. Moulds must not deform during manufacture of concrete specimens if the specimen dimensions are to be maintained.

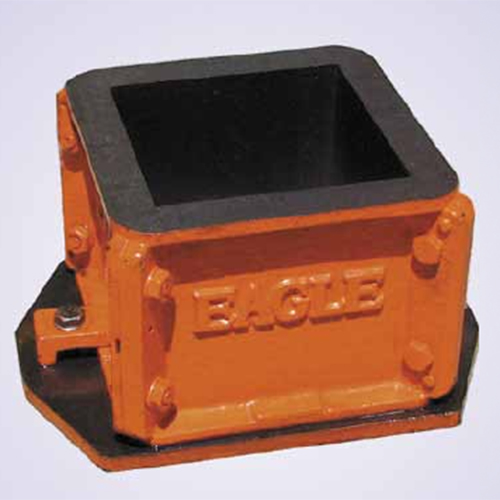

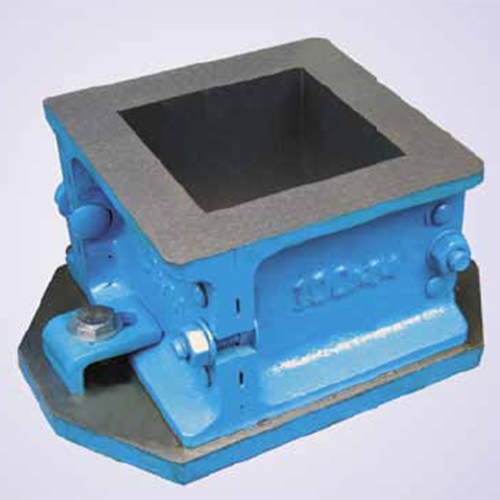

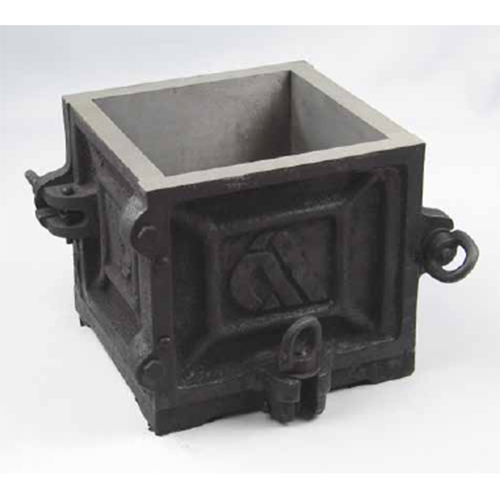

CM-FA 4-part with clamp attached base plate. Cube mould for concrete hardened testing. Material is cast iron. Machined surface finished by flat grinding machine. No distortion during specimen preparation.

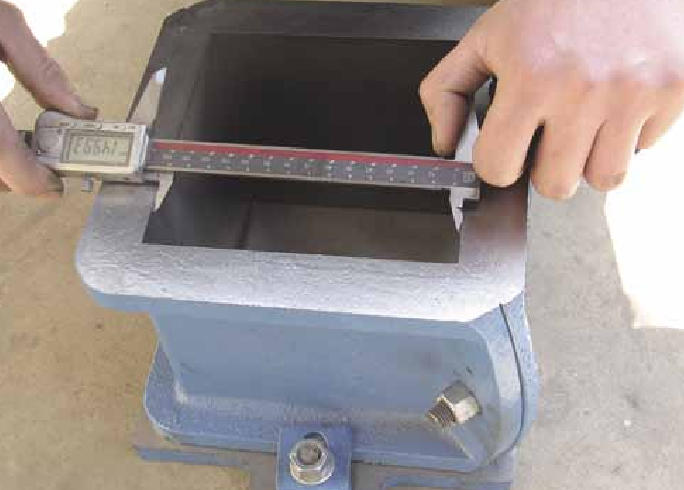

| Verifi cation of dimension using digital vernier caliper |
|

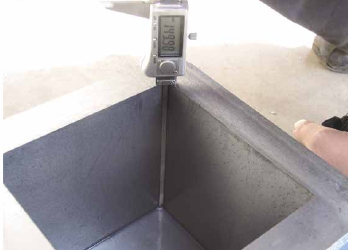

Verifi cation of dimension using electronic digital display depth caliper | |||||||||
|
|
 |

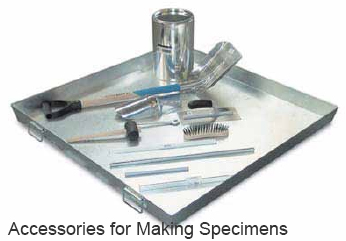

Accessories for Making Specimens Tamping rod 16 mm dia. x 600 mm Tamping bar 380 mm long x 25 mm sq. Steel straightedge Wire brush for cleaning moulds Specimen mould spanner Mould oil, 10 kg can Trowel Heavy duty mixing tray Square mouthed shovel Rubber mallet |
|
|
|
|
|
|
|
|
