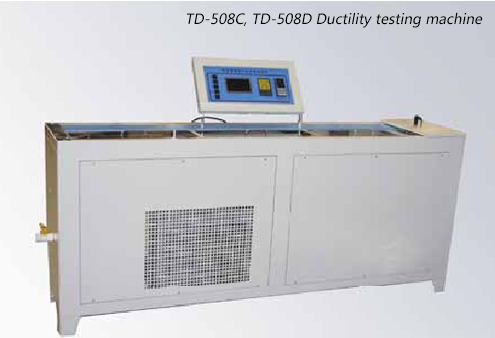

TD-508C, TD-508D Ductility testing machine

Model TD-508C, TD-508D
Power supply: AC 220V (-5%~+10%), 50 Hz
Measurement range: TD-508C:1.5 m (±10mm), TD-508D:2.0 m (±10mm)
Heating type: by an electric heater
Heating power: TD-508C: 3000 W, TD-508D: 3200 W
Bath circulation: by a magnetic circulation pump
Temperature controllin range: 5~49℃; digitally displayed
Temperature controlling accuracy: ±0.5℃
Dragging speed: two grades, 10mm/min and 50mm/min
Measurement accuracy: ±1 mm
Ductility display:  Controlled by microprocessor, digitally displayed after data processing
Refrigeration type: by a compressor, TD-508C: input power is 950W TD-508D: input power is 1200 W
Ambient temperature: -10~+35℃
Relative humidity: ≤85%
Total power consumption: TD-508C: not more than 4100 W, TD-508D: not more than 4500 W

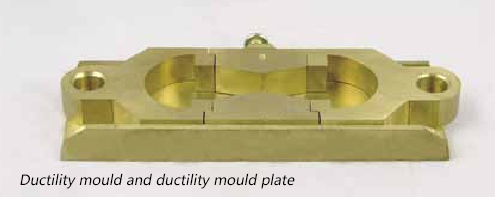

Ductility mould and ductility mould plate

It is made of brass, accurately machined to the specifi ed dimensions. This need to be ordered separately.
