DESCRIPTION

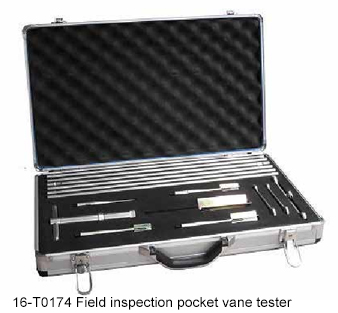

Model 16-T0174
Vane dimensions (height x dia.): 32x16 mm 40x20 mm 50.8x25.4 mm 101.6 x 50.8 mm
Measuring range: 0 to 260 k Pa
Torque value: 5 N·m
Extension rod: included
Max deepth: 3 m
Spare parts
16-T0174/1 Spring torque meter 1 pcs
16-T0174/2 Extension rod 6 pcs
Vane 4 pcs
16-T0174/31 32x16 mm (height x dia.)
16-T0174/32 40x20 mm (height x dia.)
16-T0174/33 50.8x25.4 mm (height x dia.)
16-T0174/34 101.6 x 50.8 mm (height x dia.)
16-T0174/3 Vane rod 1 pcs
16-T0174/4 Spanner 3 pcs

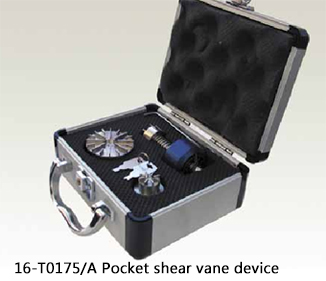

16-T0175/A Pocket shear vane device
Can be used either in the fi eld or in the laboratory, at the end of sample tubes, etc.
Vane is made of stainless steel.
Supplied complete with:
Standard 25 mm dia. vane, range 0-10 N/cm2
Sensitive vane adaptor, range 0-2 N/cm2
High capacity vane adaptor, range 0-25 N/cm2
Aluminum container
Instruction manual
Spare parts
16-T0175/1 Sensitive vane adaptor 0-2 N/cm2
16-T0175/2 High capacity vane adaptor 0-25 N/cm2
16-T0175/3 Standard vane 0-10 N/cm2
