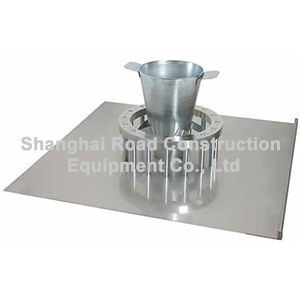

J-Ring Test

This test method covers the determination of flowability, flow time and the capacity of the SCC concrete to go through obstacles.

54-C0147/C J-Ring apparatus

Galvanised steel, 300 mm dia., with 16 single rods 18 mm dia.

Dimension: 900x900x130mm

Weight approx.: 30 kg

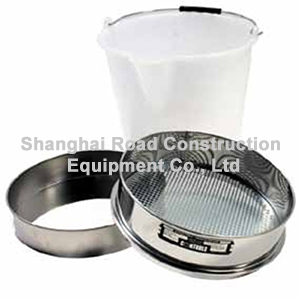

Sieve Segregation Test

Used for determining the sieve segregation resistance of self-compacting concrete. This method is not applicable to concrete containing fi bres or lightweight aggregates.

54-C0147/F Sieve segregation test set

The set includes a 300 mm dia. test sieve with perforated plate 5 mm opening, pan and plastic bucket 11 l cap.

Weight approx.: 3kg

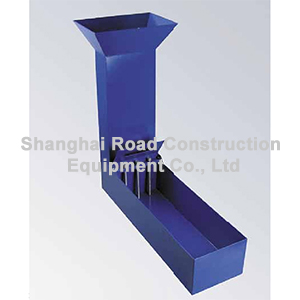

L-Shape Box Test

The method covers evaluation of self-compactability (confined flowability) of freshly mixed self-compacting concrete. With the L-shaped box it is possible to evaluate
different properties, such as filling ability, passing ability, and resistance to segregation

54-C0147/B L-Shape box apparatus

Complete with funnel tube and frame to simulate reinforcement.

Dimensions: 700x200x700 mm

Weight approx.: 30 kg

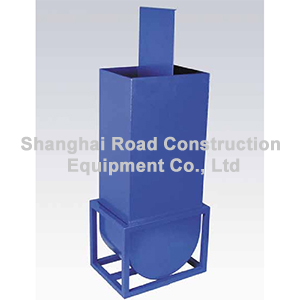

U-Shape Box Test

This test method covers the determination of confined flowability and the capacity of the SCC concrete to flow within confi ned spaces.

54-C0147/D U-Shape box apparatus

Made of galvanised steel with frame consisting of four 10 mm dia. bars and three 13 mm dia. bars.

Dimensions: 250x250x710 mm

Weight approx.: 20 kg

Accessories

These need to be ordered separately

Stopwatch with the accuracy of 0.1 second for recording the fl ow time.

Buckets with a capacity of 12-14 litres for taking concrete sample.

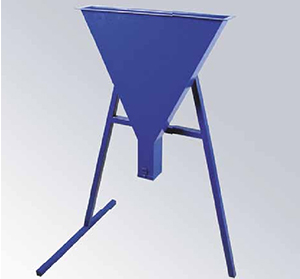

Moist sponge or towel for wetting the inner surface of the V-funnel.

These need to be ordered separately.

Straightedge for levelling the concrete.
