DESCRIPTION

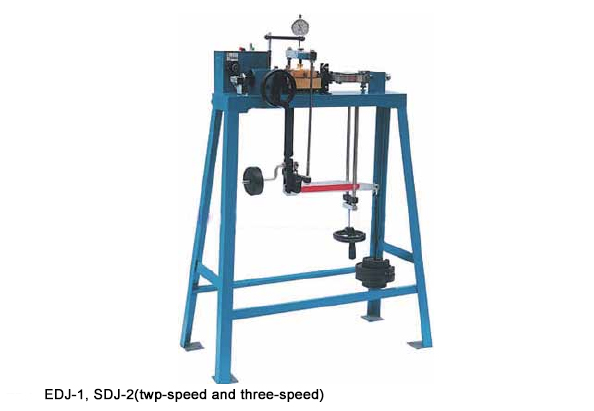

EDJ-1, SDJ-2 (Electric two-speed and three-speed)
Vertical load: 50KPa , 100KPa , 200KPa , 300KPa , 400KPa
Lever ratio: 1:12
Level shear force: Max. 1.2KN
Sample area(cm2): 30
Shear rate(mm/min): 0.02, 0.8, 2.4
Power source: 220V±10%, 50Hz
Dimension(mm): 850 x 550 x 1100(Lx Wx H)
Weight: 40 Kg

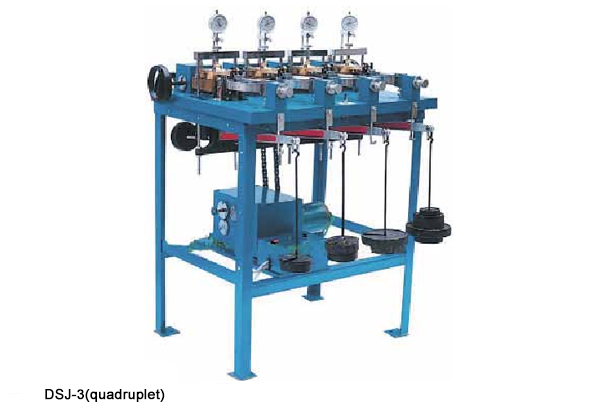

DSJ-3(quadruplet) Electric shear test machine
Vertical load: 100KPa, 200KPa, 300KPa, 400KPa
Lever ratio: 1:12
Shear box quatity: 4
Level shear force: Max. 1.2KN
Sample area(cm): 30 x 2 H
Shear rate(mm/min): 2.4, 0.8, 0.1, 0.02
Power: <100W
Power source: 220V±10%, 50Hz
Dimension(mm): 680 x 740 x 1050(LxWxH)
Weight: 200 Kg

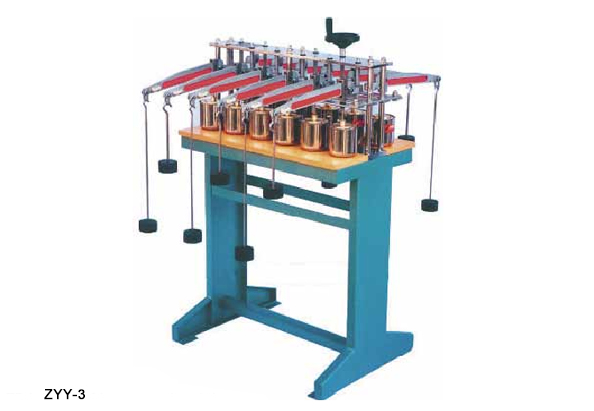

ZYY-3 (Duodenary) shear test machine
Vertical load: 400KPa, 300KPa, 200KPa, 100KPa, 50KPa
Lever ratio: 1:12
Max load: 1.2KN
Load method: Weight
Sample area(cm2): 30
Soil sample container quantity: 12, sample 36 at the same time
Dimension(mm): 760 x 880 x 1100(LxWxH)
Weight: 220 Kg(include weigths)

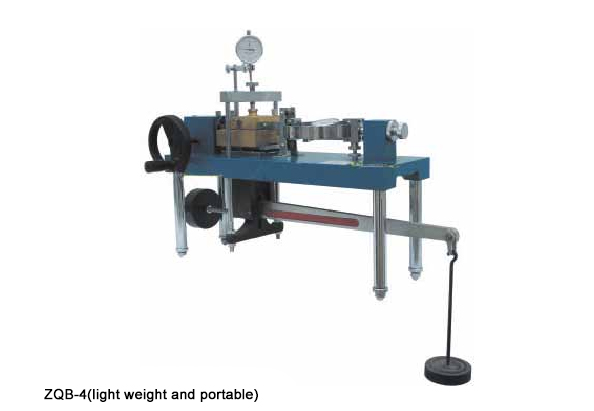

ZQB-4 (light weight and portable)
Soil sample area: 30cm2x 2cm(H)
Vertical load: 50KPa, 100KPa, 200KPa , 300KPa, 400KPa (hanger is first grade)
Lever ratio: 1:20
Level shear force: Max. 1.2KN
Sample area(cm2): 30
Power source: 220V±10%, 50Hz
Dimension(mm): 850 x 550 x 1100(LxWxH)
Weight: 40 Kg

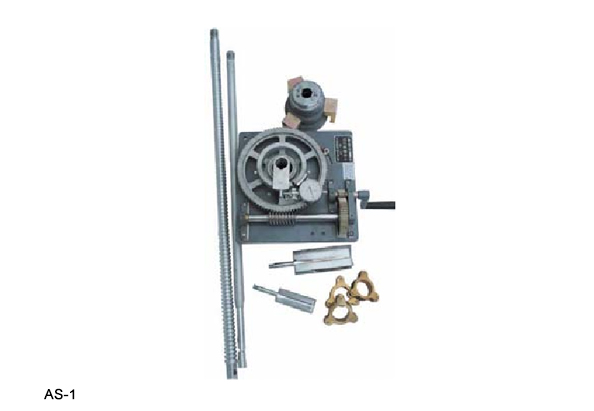

AS-1 (Cross plate) shear test machine
Cross board dimension: Ф75×150 mm, Ф50×100 mm
Steel ring torsion: 80N.m
Torsion accuracy: 0.55N.m
Guide rod: Ф30 x 1040mm
Dimension(mm): 430 x 910 x 220 (Lx Wx H)
Weight: 40 Kg
