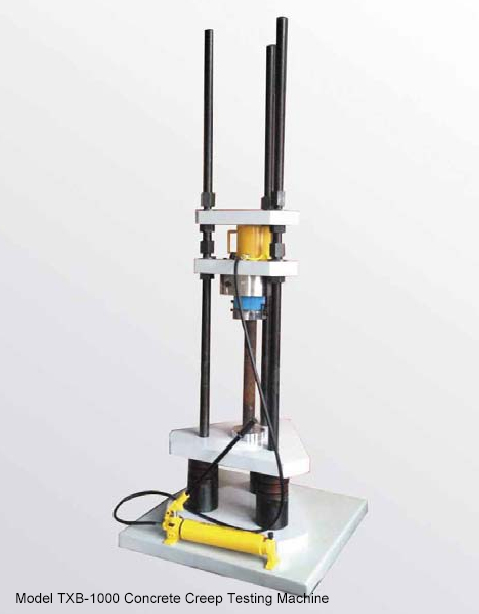

Model TXB-1000 Concrete Creep Testing Machine

Model TXB-1000
Maximum Testing Force: 1000k N
Measurement Range: 0-1000KN
Relative Reading error:  ±1%
Compression space: 1200mm
Specimen dimension: Dia. 150 × Height 300mm
Max Specimen quantity: 3 pcs
Spring Type: Disc springSpring Compression Stroke: 50-52mm
Maximum Distance Between Upper
Platen and Lower Platen
(Compression space):2500mm
Power Supply: 220V, 50Hz
Package dimension: 750mm×750mm×2800mm
Gross weight:  1200k

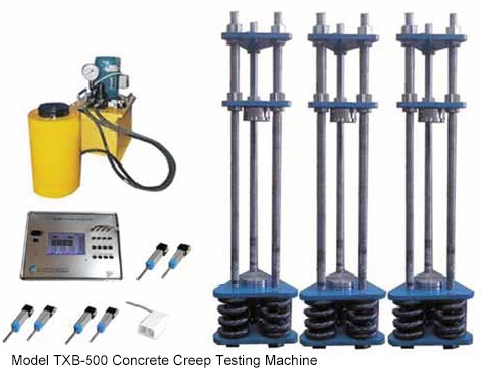

Model TXB-500 Concrete Creep Testing Machine

Model TXB-500
Maximum Testing Force: 500k N
Measurement Range: 0-500KN
Relative Reading error:  ±1%
Spring type: Compresstion spring
Spring Height: 300mm
Spring Compression Stroke: 52mm
Maximum Distance Between Upper
Platen and Lower Platen
(Compression space):1500mm
Power Supply: 380V, 50Hz
Load machine dimension: 300mm×200mm×1150mm
Inside dimension:  1000mm×600mm×1000mm
Net weight: About 800kg

Packing List

One reaction frame suitable for 3 Nos. dia. 150 x height 300mm cylindrical sample(This frame can be custom-made as per clients' require)

One  pumping  unit  electrically  operated(user selectable)

One hydraulic jack

One load gauge

One pressure digital display

Six pcs displacement sensors( user selectable )

Dia. 150 x Height. 300mm Cylinder mould can be ordered seperately
